M. C200/C210 - OEM IR Modules

Quick overview

Thermal Imaging Camera Module

Thermal Imaging Camera Module - Easy Intergration into a Variety of Thermal Imaging Cameras

  • 320 x 240 Uncooled Vox Microbolometer

  • Long-Wave Infrared 8-14µm

  • Advanced 23.5µm Pixel Pitch Detector

  • New High Sensitivity TEC Cooled Detector

  • Image Quality Improvement Functions

Key Features


  • High Sensitivity: Max NETD 40mk

  • High Image Quality: Image Quality Improvement

  • Wide Variety of Optional Lenses



Image Quality Improvement






ITEM C200 C210
Detector 320 x 240 Uncooled Vox Microbolometer
TE Cooler with TEC
Pixel Size 23µm
Spectral Range 8 to 14µm
NETD (with F/1 Lens) 40mk
Sensor Frame Rate 60Hz 8.5Hz
Dynamic Range (with F/1 lens) -40°C to 120°C
Image Quality Improvement Image Processing Function (NICE) ON, OFF
Sharpness OFF, 1, 2, 3, 4, 5
Averaging OFF, L, M, H
GAMMA Correction ON, OFF
Display Processing Color Palette Black-Hot, Iron, Rainbow, White-Hot
Zoom x1.0 to x4.0 (0.1 Zoom)
Flip Image ON, OFF
Masking ON, OFF
Color Emphasis Off / Over / Under
Isotherm Off / Over/ Under
Temperature Measurement ON (Center Point), OFF
Measurement Accuracy ±15° or ±15%
Composite Video Output NTSC or PAL
Digital Output ITU-R, BT656 Video Data / 16-bit Raw Data
Ethernet (Option) ONVIF Compliant (MPEG, H264) (Sep2011Release)
Control Interface RS-232C, RS-485
Control Protocol RS-232C NEC Original
RS-485 Pelco-D, NEC Original
External Trigger I/O Input Execute Non Uniformity Correction (NUC)
Output Non Uniformity Correction (NUC) Timing, Alarm Signal
Alarm Signal Trigger Temperature (Isotherm) or Brightness (Color Emphasis)
Power Supply 12VDC ±10%
Power Consumption Typical 4.5W
Maximum 7W
Operating Temperature

-30°C to 60°C

-22°F to +140°F

Size (without Lens) 62(W) x 46(H) x 54.5(D)mm
Weight (without Lens) 160g
Basic Warranty Two (2) Years
Case Case is Optional
Lens-Less Model Availiable

Optional Lenses:

Focal Length F-Number FOV
8mm F = 1.0 50° (H)
14mm F = 1.4 30° (H)
25mm F = 1.0 17.1° (H)
25mm F = 1.4 17.1° (H)
35mm F = 1.0 12.3° (H)
50mm F = 1.0 8.6° (H)
50mm F = 1.4 8.6° (H)

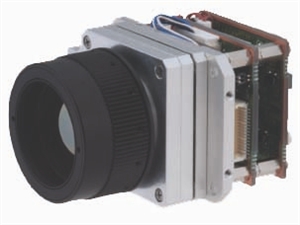

 Model C200C Infrared Module with 25mm Lens



 Demonstrating Typical High Quality Image



Demonstrating Image Sharpness Ranges

Call for pricing

We also recommend

Additional information

Manufacturer: Nippon Avionics
