B. Capacitor Discharge Type

Quick overview

Capacitor Discharge Type Welding Power Supply by AVIO

Capacitor Discharge Type
The Dual Pulse Function minimizes the welding spark and improves the welding quality.

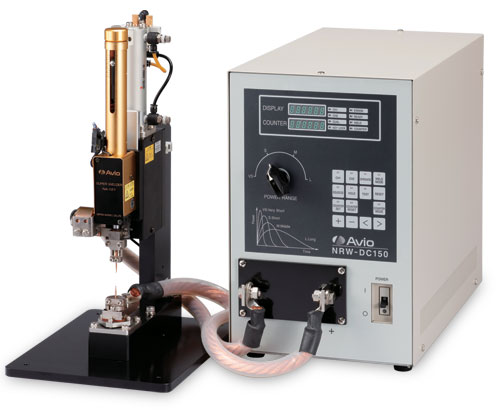

NRW-DC150


Product Features


  • Rapid Release of Energy Using High Capacitance Energy Storage
  • Dual Pulse Function Minimizes Welding Spark and Improves Welding Quality
  • Suitable for Aluminum, Copper, as well as other Weldable Materials
  • Deformation and Burning is Minimized due to Short, Concentrated Energy Bursts
  • Fast Charging Time Improves Productivity (Welding Speed 75W•S @ 120Shots/min)
  • VS (Very Short) Mode yields effective 200W•S Peak Welding Current

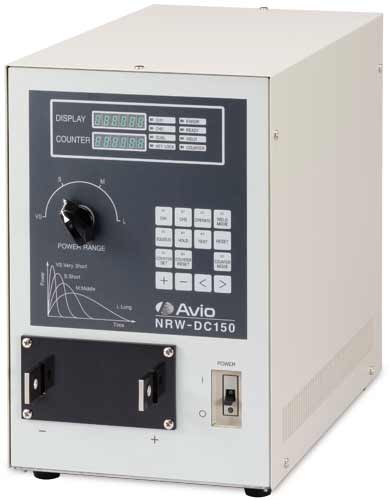

Welding Power Supply:

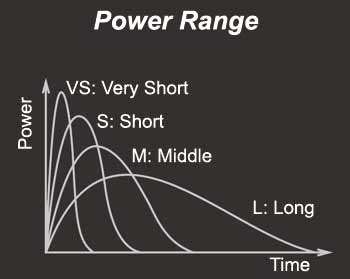

Welding Current Waveform:



Function
NRW-DC150
Welding Transformer
Built-In
Stored Energy
1-150W•S (0.1 Steps)
Maximum Output Power
VS Pulse
5500A
2.1ms
S Pulse
4500A
3.2ms
M Pulse
3600A
4.3ms
L Pulse
2600A
6.2ms
Duty Cycle
@ 25W•S
200 shots/min
@ 75W•S 120 shots/min
@ 150W•S 80 shots/min

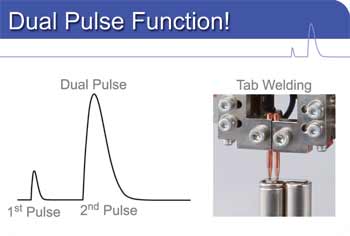

Dual Pulse Function
Included Standard
Squees Time (Start of Weld Cycle to First Pulse)
0.01 ~ 9.99 sec
Hold Time (Last Pulse to End of Weld Cycle)
0.01 ~ 9.99 sec
Dimensions
220(W) x 400(D) 347(H) mm
Weight
31kg
Power Source
AC200 ~ 230V ±10%, 1ø
Option: AC100V, 115V



Call for pricing
:

Additional information

Manufacturer: Nippon Avionics
