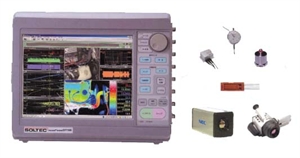

Non-Contact Temperature Measurement: Infrared thermal images are recorded by NEC Avio Infrared Thermal Imaging Camera Models such as Model(s) TS9230/TS9260 via Ethernet connection.
A brilliant TFT LCD color monitor displays trend of max/min and average temperature. Selected display areas can be set to alarm on preset temperature limits.
Direct Connection on Sensors: A wide range of plug-in Signal Conditioning Amplifiers accept direct input from Voltage, Current, Strain, Temperature, Pressure, F/V, and Charge Sensors.
Amplifiers are interchangeable with TA220-2000 Series Data Acquisition Recorders. Expanded Arithmetic and FFT Features: Perform Arithmetic operations between channels including Basic Math, Trig, Calculus, and Moving Average. FFT Analysis includes Power, Linear, RMS, and Power Density Spectrums.
Multi-Channel Measurement: Up to 16 isolated, independent data channels simultaneously display connected sensor data.
Customized Monitor Screen: Easily configure display to simultaneously show desired combinations of Digital Data, YT & XY Graphs, and Infrared Imaging Data.
| Compatible IR Camera |
TS9230/TS9260, others contact SOLTEC |
| IR Cameras per DF1100 Mainframe |
One (1) IR Camera Max |
| Simultaneous Recording Function |
Simultaneously Measure, Record and Display Infrared Image Data, Temperature Trend and Analog Signals |
| Infrared Images Recording Speed |
10 frame/sec |
Infrared Data Recording Only |
| 5 frames/sec |
Multi-Recorder Mode with 1µs Memory Recording and 40µs HDD Recording |
| Analog Input Recording Channels |
16 Channels Max + Event Unit |
| Analog Input Recoring Speed |
100µs to 999ms, 1s to 100s |
| Display Format |
Color Display of Analog Input and Infrared Trend Data |
| FFT Analysis Functions |
Spectrums |
Power, Linear, RMS and Power Density |
| FFT ANalysis Sampling |
Real Time |
1024 Samples |
| 2nd Analysis Selected Sampling |
256, 512, 1024, 2048, 4096, 8192, 1684, 32768, & 65536 samples |
| Arithmetic Operations |
Four (4) Arithmetic Operations. Calculation between channels, Power, Square Root, Absolute Value, Common Logarithm, Index, RMS, Trigonometric, 1st Order Differential/Intergral, 2nd Order Differential/Integral, Moving Average (replay only) and USer Defined Equations. |
| Operation Modes |
Pen Recorder, Memory Recorder, HDD Recorder, and Multi-Recorder (Memory + HDD Recorder) Modes |
| Built-In Thermal Printer Chart Speed |
100mm/s to 1mm/min |
| Analog Signal Sampling |
Selectable 1µs (1Ms/s) maximum |
| Recording Channels |
16 Channels Max + Event Unit (with all Analog Channel Amplifiers and Event Unit installed. Infrared Image Temperature Trend Waveform is not available) |
| Input Amplifiers |
Plug-in type. Uses standard AP Amplifiers interchangeable with TA220-2000 Series Data Acquisition Recorders |
| Internal Memory |
|
Internal HD (160GB) |
| Recording Times |
Image Data only (10 frames/sec): Approx. 24 hours |
| Image |
5 frames/sec + 16 Channel Data: Approx 48 hours |
| Display |
12.1" TFT, Color LCD. Effective display area. 245.76mm x 184.32mm (1024 x 768 pixels) |
| Operation Environment |
Temperature |
5° to 40°C |
| Humidity |
35 to 80% (non-condensing) |
| Power Source |
90 to 264VAC, 50/60Hz |
| Power Consumption |
Approx. 100VA with eight (8) model TA220-AP11-101 Plug-in Voltage Amplifiers installed |
| Dimensions |
8.0kg (mainframe only) |
| Weight |
Approx. 8.7kg (mainframme +four (4) Dual chChannel Amps) |
Features:
- Non-Contact Temperature Measuremtn; Infrared thermal images are recorded by Infrared Thermal Imaging Camera Models TS9230/TS9260 via Ethernet connection. A brilliant TFT LCD color monitor displays trend of max/min and average temperature. Selected Display areas can be set to alarm on preset temperature limits.
- Multi-Channel measurement: up tp 16 isolated, independent data channels simultaneously display connected sensor data.
- Direct Connection of Sensors: A wide range of plug-in Signal Conditioning Amplifiers accept direct input from Voltage, Current, Strain Temperature, Pressure, F/V and Charge Sensors. Amplifiers are interchangeable with existing TA220-2000 Series Data Acquisition Recorders.
- Customized Monitor Screen: Easily configure display to simultaneously show desired combinations of Digital Data, YT & XY Graphs and Infrared Imaging Data.
- Expand Arithmetic and FFT Features: Perform Arithmetic operations between Channels including Basic Math, Trig., Calculus, and Mocing Average. FFT Analysis inslude Power, Linear, RMS, and Power Density Spectrums.
Note: Plug-in Signal Conditioning Amplifier Modules, Model TS9100 Thermal Imaging Camera and Sensors are optionally selected based on measurement application.
Measurement and Recording Applications:
- Automatic Welding Maching: Voltage, Current and Temperature
- Film: Thickness and Temperature Distribution
- Electric Cable and Tube Extrusion Machines: Temperature and Pressure
- Food Industry: Kneading Machine Dough Temperature and Mixing Motor Torque
