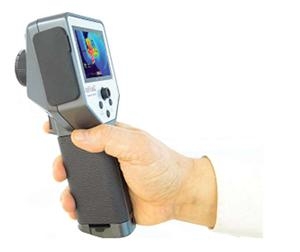

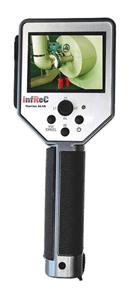

H. G30 - Compact IR Cameras for Tool Box

Quick overview

Economical Infrared Thermal Imager for General Inspections

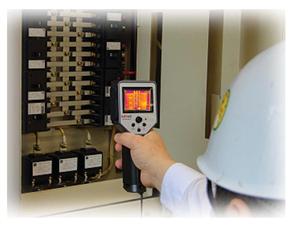

The Thermo Gear G30 stores clear, crisp 160 x 120 pixel, radiometric thermal images to an internal SD card in JPEG format. Weighing only 500g with a 5 hour Li-Ion battery. Accurate to ±2°C8.5Hz frame rate, and is highly dependable for Predictive Field Maintenance and R&D applications. User friendly joystick operation and autofocus capabilities make temperature measurements easy for inexperienced operators. Analysis and Report software is included.



G30W  - Measuring Range: -20°C to +350°C

G30S  - Measuring Range: -20°C to +100°C


Features

  • Digital Camera Simultaneous Shooting and Temperature Display on Visible Image

  • Multi-Lingual Graphical User with Joystick for Easy Operation

  • Fully Radiometric High Quality IR Images

  • SD Card Direct Recording in JPEG Format for Easy Reporting

  • Wide Field of View - 28°(H) x 21°(V)

  • Focus Free (1.3~), Auto Level-Sense

  • Minimum Focus Distance: 10cm

  • Alarm and Isotherm

  • Fusion, Analysis and Report by PC Software included

  • Rechargeable Li-Ion Battery; Seven (7) hours of Continuous Use

  • Lightweight: Approx. 500g

  • Dust/Splash Proof with IP54-Rated Construction

  • Three (3) Year Warranty



ITEM G30W G30S
Measuring Range -20° to +350°C -20° to +100°C
Thermal Sensitivity (NETD)

0.2°C (at 30°C)

0.1°C (with S/N improvement at 30°C)

0.1°C (at 30°C)
Infrared Detector Uncooled Focal Plane Array, 160 x 120 pixels
Spectral RAnge 8 to 13µm
Frame Rate 8.5 frames/sec
Field of View 28°(H) x 21°(V)
Spatial Resolution (IFOV) 3.1mrad
Focus Distance 10cm to Infinity (fortemperature accuracy: 50cm to Infinity)
Focus

Manual (Focus-Free beyond 1.3m)

Accuracy ±2°C or ±2%, wichever is greater
Visible Light Camera 0.7M pixels CMOS Camera
Temperature Display Center, Max/Min, Moveable (1 point), and ΔΤ
Emissivity Correction Yes
Background Compensation Yes
Isotherm Yes
Alarm Display Alarm, Color Alarm
Image Improvement Yes (Averaging, Median Filter)
Color Palette Four (4) Types: Rainbow, Iron, Iris, BW
Video Output NTSC/PAL (Min Pin)
Image Storage Format/Medium Radiometric JPEG/SD Card
PC Interface USB 2.0 (Mass Storage Function)
Software InfRec Analyzer NS9500LT
Multiple Language Menu 16Languages: English, French, Spanish, German, Italian, Portuguese, Russian, Finnish, Danish, Norwegian, Swedish, Dutch, Chinese (Traditional & Simplified), Korean and Japanese
Rechargeable Battery Li-Ion Battery; Seven (7) Hours of Continous Use
Operation Temperature -15°C to +50°C, 90%RH or less
Vibration 29.4m/sec2 (3G)
Shock 294m/sec2 (30G)
Dimensions Approx. 80(W) x 209(H) x 123(D) mm
Dust/Splash Proof IP54
Weight Approx. 500g (including battery)
Standard Accessories AC Adapter, Battery Charger, Rechargeable Li-Ion Battery, SD Card (1GB), USB Cable, Hand Strap, Software, Operational Manual and Carrying Case
Optional Accesories Analysis Software (NS9500STD), Tripod

G30
Call for pricing

Additional information

Manufacturer: Nippon Avionics
