General Purpose Reflow Head

General Purpose Reflow Heads

Standard Type:   Air Drive Type:

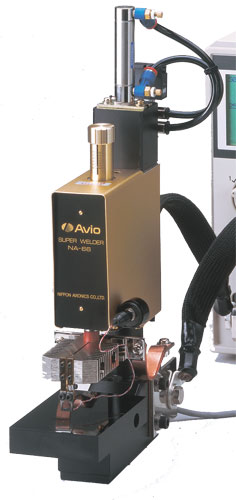

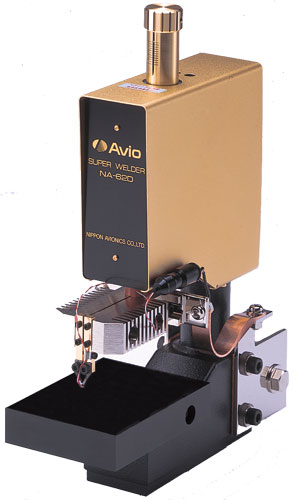

NA-62D                         NA-66





  • Monolothic Head with Integrated Drive Section and Force Application Section
  • Heater Tips are accommodated
  • Two types, manual driven and air driven

Items NA-62D NA-66
Pressure Range 4.9 ~ 44.1 N 4.9 ~ 44.1 N
Stroke 8mm 8mm
Driving Method Manual by Foot Pedal Air
Dimesion/Weight 77(W) x 212(D) x 275(H) 2.4kg 77(W) x 212(D) x 360(H) 3.8kg
