Hand Piece Type

When fixed type weld heads cannot be used due to unique or unusual work piece configurations, these small, manually applied weld heads offer a great solution. Each compact, light weight weld head is operated with lower power and side-to-side electrode movement has been eliminated.



Items

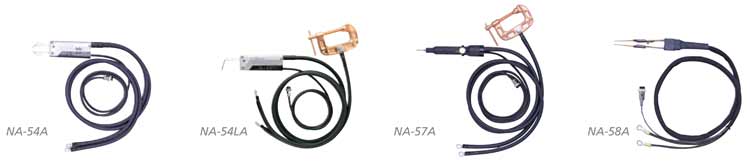

NA-54A
NA-54LA
NA-57A
NA-58A
Pressure Range
9.8-39.2N 9.8-39.2N 9.8-49N Manual
Electrode Stroke
Max. 10mm Max. 1mm
Depth Dimension of Pocket
50mm 75mm
Driving Method
Manual Manual Manual Manual
Applicable Electrode
EL-125 Series EL-54L

EL-57A

Specialized for NA-57A

EL-58A

Specialized for NA-58A
Dimensions
30(W) x 195(D) x 47(H)mm 30(W) x 195(D) x 47(H)mm 36ø 207(D)mm 24(W) x 16(D) x 157(H)mm
Weld Cable
1500mm 1500mm 1500mm 1100mm
