Heater Tips

Heater Tip Type

System Head: Best Suited for a Precise Joining & Automation

Stable Pressurizing by the small and high performance head, the motor drive is the best for a precise joining.

Heater Tip & Shank

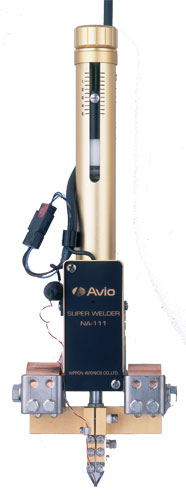

NA-111

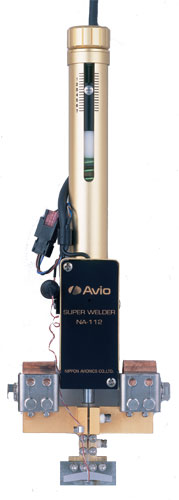

NA-112

Items
Pressure Range
0.7-5N 5-65N
Pressure Method
Spring Spring
Electrode Stroke
Max: 50mm Max: 50mm
Drive Method
Manual, Motor, Air
Dimensions
106(W) x 48(D) x 287(H) mm 106(W) x 48(D) x 285(H) mm
Weight
0.6kg 0.6kg
