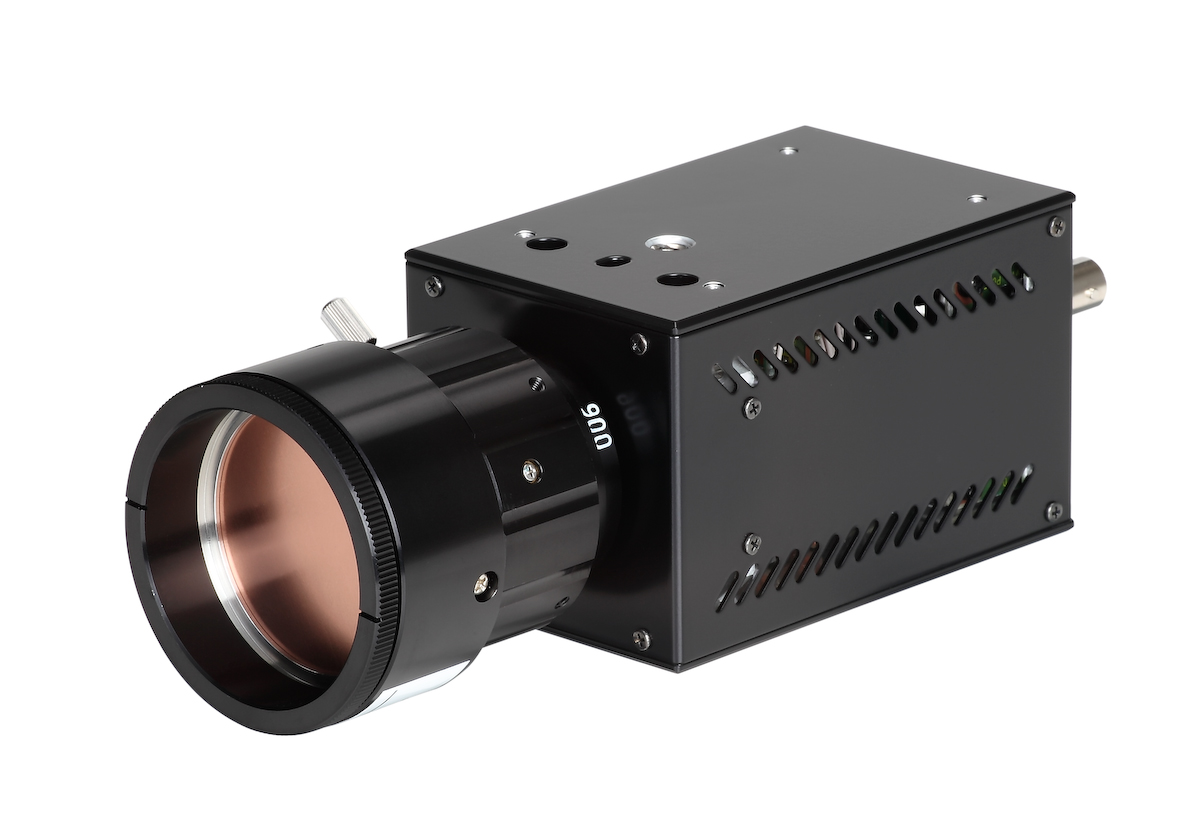

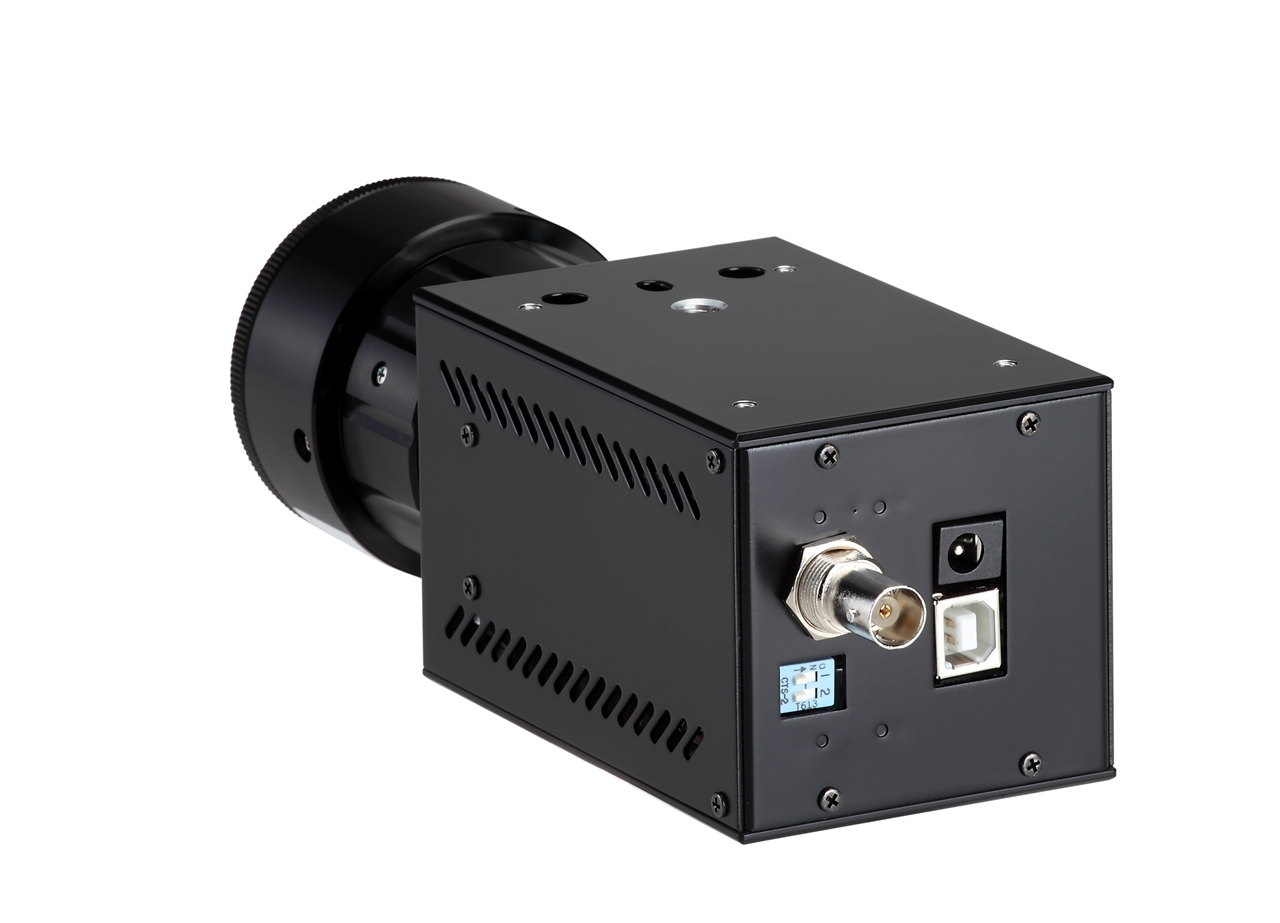

Picture of IRV-T0831C


IRV-T0831C

Quick overview

FPA based, palm size and light weight real-time THz imager

Advantages

  • QVGA format
  • High Sensitivity
  • "Lock In" for SNR improvement

Application

  • Beam Profiling
  • Biomedical Imaging
  • Non-destructive testing
  • Process Control

*Above image is generated from acquired data using off-the-shelf software.

Example of THz source
Quantum cascade laser
Frequency : 3THz, Power : 6.6μW





Detector Uncooled microbolometer
Array format 320x 240 - 235µm pitch
Field of View 15.0° x 11.2° (Equipped with option lens IRV-TL028)
Noise equivalent power (NEP) (†) <100pw 4="" thz="" td="">
Frequency range (†) 1~7 THz
Signal Outputs

Digital image data: USB 2.0

Sync. Signal: BNC

Frame Rate 8.5Hz
Lock In Function

Sync. Signal: 4.29Hz, 2.14Hz, 1.43Hz, 1.07Hz

TTL output: +5V

 (†) NEP and frequency range are based on evalution and calculated results. These performances are not guarantees because of no standard testing method in the world.

Operation Temperature 0~.35C / al <80%RH
Power 12VDC
Weight approx. 550g (excl. lens and filter)
Accessories USB cable, Filter adapter, Viewer software, User's manual



Call for pricing
