Resistance Welder System Head

Stable pressurizing by the small and high performance head, the motor drive is the best for a precise joining.

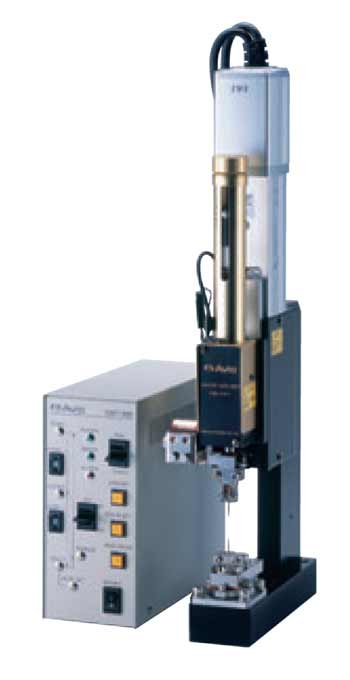

An example of a System Head for the Motor:

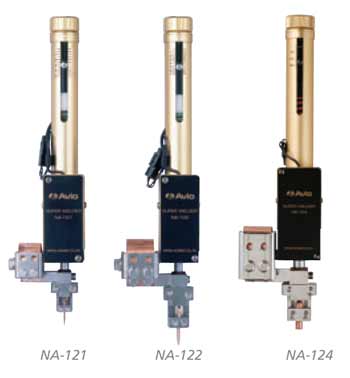

Opposed Type of System Heads:

Items
NA-121
NA-122
NA-124
Pressure Range
0.7-5N 5-65N 40-300N
Pressure Method
Spring Spring Spring
Applicable Electrodes
EH-062, EH-125 EH-125, EH-250, EO-250 EH-60C, EO-250, EH-250, EH-80
Dimensions
74(W) x 48(D) x 285(H)mm 82(W) x 50(D) x 301(H)mm 92.8(W) x 56.6(D) x 326(H)mm
Weight
0.6kg 0.8kg 1.5kg

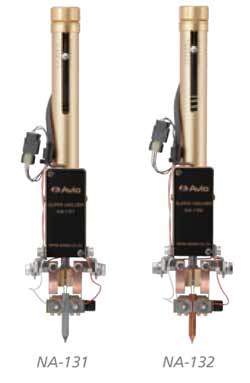

Parallel Gap Type System Heads:

Items
NA-131
NA-132
Pressure Range
0.7-5N 5-65N
Pressure Method
Spring Spring
Applicable Electrodes
EP-406, EP-711 EP-406, EP-711
Dimensions
76(W) x 51(D) x 299(H)mm 76(W) x 51(D) x 299(H)mm
Weight
0.7kg 0.7kg

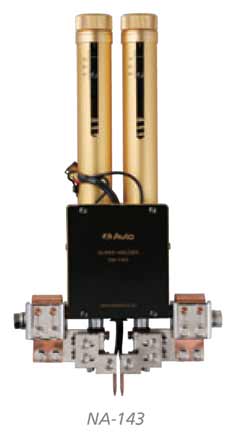

Series Type System Head:

Items
NA-143
Pressure Range
40-150N
Pressure Method
Spring
Applicable Electrodes
EH-125, EO-250, EH-250
Dimensions
174.2(W) x 61.8(D) x 302(H)mm
Weight
2.7kg
