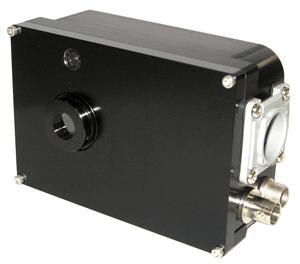

Fix Mount Infrared Camera

The S30 Series is a compact, lightweight, low cost Thermal Imaging Camera for FA / Production and Line Monitoring.

Equipped with Ethernet Interfacing and Alarm Contact Output for capturing abnormal conditions and sending a signal to the process controller through a PC, are standard. Applications such as control of production  material, monitoring of facilities, fire detection of waste and fuel storage areas are easily achieved. By utilizing this low cost Thermal Imaging Camera, monitoring systems are simple to install and total monitoring systems with multiple installations are possible.

Product Features


  • Dust / Splash Proof Protection with an IP67 rating can withstand harsh environments of production lines
  • Compact, lightweight, slim style is easy to install in small areas

  • 160 x 120 pixel detector housed in a compact body provides a high quality image

  • Two Temperature Ranges

  • Equipped with a visual camera (1.3M Pixels) and is capable of providing a thermal or visual snapshot or video feed

  • Ethernet Interface is standard and provides ease of design for monitoring systems through a PC

  • Alarm Setting and Contact Output are available for monitoring abnormal temperatures



ITEM S30W S30H
Basice Specifications Measuring Range -20° to +350°C 0° to +600°C
NETD <0.2°c at="" 30="" c="" td=""> <0.5°c at="" 30="" c="" --0="" 5="" c--="">
Infrared Detector Uncooled Focal Plane Array (Microbolometer)
Spectral Range 8 to 13µm
Frame Rate 8.5 frames/sec
Resolution 160 x 120
Field of View 28°(H) x 21°(V)
IFOV 3.1mrad
Focusing Range 50cm to Infinity
Focus

Manual Focus: 10cm to Infinity

Focus Free at 1.3m or over

Accuracy ±2° or ±2% at 0° to 40°C
Measuring Features Visible Camera 1.3M Pixels; CMOS Camera
Emissivity

0.10 ~ 1.00 (0.01 Step)

Input of Environmental Temperature is Required

Background Compensation Provided
Isotherm Provided
Alarm Output 1 Point: Contact Output - Displays on the PC  Monitor when the Alarm Condition is reached
Color Alarm 1 Point: Colors Upper or Lower Part of the Setup Value
Alarm Setup Setup of Alarm Temperature and Display of Alarm Message fro Abnormal Conditions
Contact Output 1 Point (Non-Voltage Contact Output)
Storage of Setup Stores 1 Pattern of User Setup
Image Improvement Provided
Color Palette Rainbow, Iris, Brightness
Interface Ethernet Provided
USB 2.0 Provided
Video Output Composite Video NTSC / PAL
Communication Protocol TCP / IP
RJ-45 Connector Exclusive Round Type Connector for Power Supply
BNC Connector For Video Output
Power Supply Power Supply DC12V±1V
Power Consumption 3.0W (typical) at Ambient Temperature (35°C)
AC Power Provided
Sleep Mode Provided
Automatic Shutoff Provided
Environental Specifications Operating Temperature / Humidity 0° to 50°C / <90%rh non-condensing="" --90="" rh--="">
Storage Temperature / Humidity -40° to +70°C / <90 non-condensing="" --90="" rh--="">
Protection IP67
Dimensions Approx. 110 x 75 x 50mm
Weight <5500g

Call for pricing

Additional information

Manufacturer: Nippon Avionics
