System Head Accessories

System Head Accessories

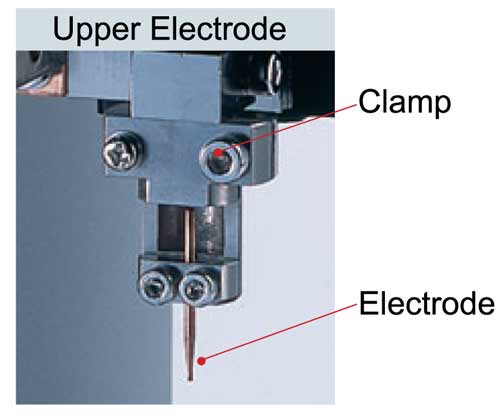

Upper Electrode Accessory

Items
Type
Electrode Diameter
Holder/Horn
Base
Electrode
NA-121 Straight ø1.6* S121-16THD* EH-062
ø3.2 S121-32THD EH-125
NA-122 ø3.2* S122-32THD* EH-125
ø6.4 S122-64THD EH-250, EO-250
NA-124 ø6.4 S124-64THD EH-250, EO-250
ø8.0 S124-80THD* EH-80-00, EH-60C
NA-121 Shift ø1.6* S121-16HORN S121-CLMP EH-062
ø3.2 S121-32HORN EH-125
NA-122 ø3.2* S122-32HORN S122-CLMP EH-125
ø6.4 S122-64HORN EH-250, EO-250
NA-124 ø3.2 S143-32SHD* EH-125
ø6.4 S143-64SHD EH-250, EO-250

* The mark is attached as a part of the welding head.

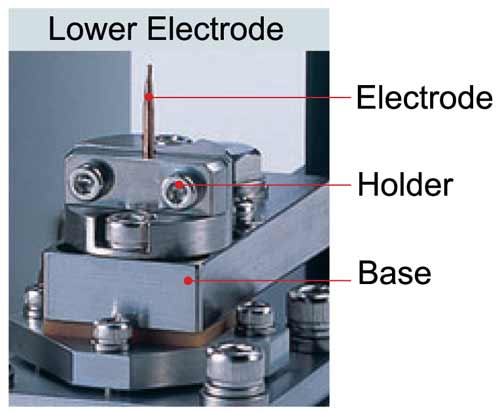

Lower Electrode Accessory

Items
Type
Electrode Diameter
Holder/Horn
Base
Electrode

NA-121

NA-122

Straight ø1.6 S12X-16BHD

S12X-B-F¹

12X-B

EH-062
ø3.2 S12X-32BHD EH-125
ø6.4 S12X-64BHD EH-250, EO-250
NA-124 ø6.4 124-B-F EH-250, EO-250
ø8.0 EH-80-00, EH-60C
NA-121 Shift ø1.6 S12X-16HORN

12X-B-F¹

12X-B

EH-062
ø3.2 S12X-32HORN EH-125
ø6.4 S12X-64HORN EH-250, EO-250
NA-124 143-BS²

¹ Leveling Type               ² Copper Base

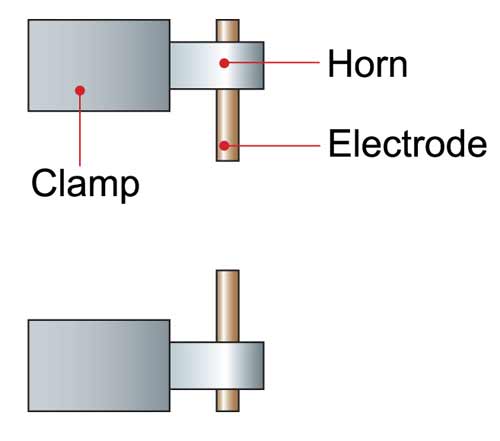

Offset/Shift Type
