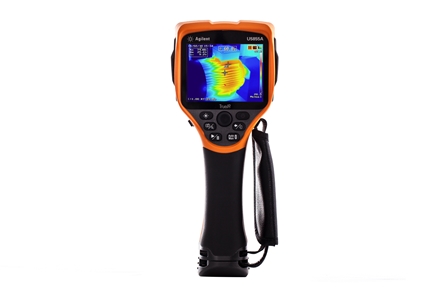

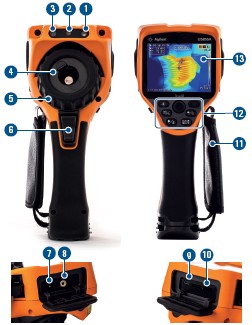

TrueIR Thermal Imager U5855A

Extended Warranty (to learn more click on the link above)

With the Fine Resolution capability, you can achieve effective resolution of 320 x 240 pixels from a 160 x 120 pixels detector – four times more resolution, four times more details. Four times more pixels with Fine Resolution capability View finer object details with 4x digital zoom Quick access buttons to easily change settings or functions Long product warranty – 3 years Ergonomically designed with evenly distributed weight In-camera monitoring for temperature trending Ability to focus on objects, as close as 10 cm away

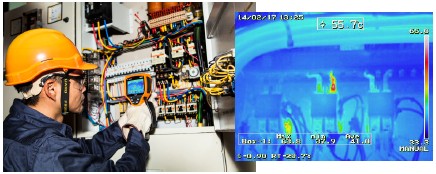

Predictive maintenance on electrical systems

Predictive maintenance on electromechanical systems

Get more details with Fine Resolution

Fine Resolution is a technology that restores the details originally inherent to the object while enhancing the resolution, at the same time minimizing fuzziness and noise. It is accomplished by performing sophisticated calculations on continuous multi-frames of the image – evaluated for misalignment caused mainly by hand tremor. The firmware then detects and corrects the information between images through one feature pixel.

With Fine Resolution,

• Get an effective 320 x 240 pixels of radiometric JPEG IR image which is clearer and sharper
• See fine details on objects as close as 10cm, especially when measuring temperature on small components which are close to each other.
• With 4x digital zoom, magnify a thermal image of a far-away objects quickly to identify anomalies and to reveal even finer details.
• These are essential for industrial, building inspection, electronics, as well as medical research.

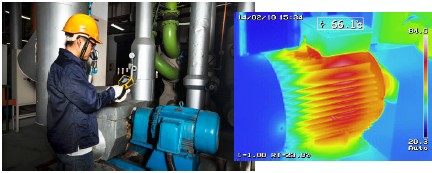

              Figure 1. Samples of IR images

Perform more in-camera measurements and analysis

Capture thermal images effectively with its intuitive and easy to use tools:

• Configurable quick access buttons that are able to change functions based on user preference.
• Monitor temperature trends over time for quality checks when monitoring process parameters in industrial plant automation
• Perform analysis using its extensive range of measurement tools.
• Coupled with the U5855A’s high sensitivity of 0.07 °C, it can detect the slightest temperature difference to provide more accurate temperature readings.

Ergonomically designed for comfort

The ergonomically built TrueIR thermal imager is designed to let you carry out daily tasks comfortably. With its evenly distributed weight of only 746 grams and good stability, it fits comfortably in your palm without straining your hands, even when used over a long period of time. With a stable grip, it allows you to single-handedly capture more images and to work more efficiently.

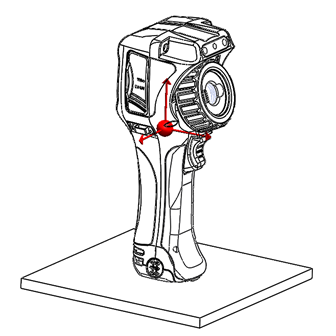

Figure 5. Ergonomically designed to have distributed weight. It can even stand on its own!	Figure 6. Good grip with belt support

TrueIR Analysis and Reporting Tool

Import, analyze, edit and present your thermal images to your clients swiftly with TrueIR analysis and reporting tool. With this PC software, you could change color settings and corrective parameters, add color alarm, or pick and choose any of the six measurement analysis tools or diagrams to help you present your findings to your customers clearly.

Also, generate reports quickly with the help of ready templates and then customize them accordingly based on your clients’ requirements.

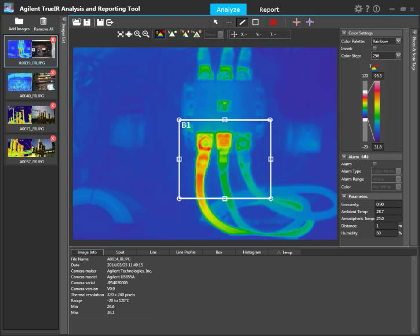

Figure 7. TrueIR Analysis and Reporting Tools GUI

Features:

• Change color settings and corrective parameters, like emissivity, ambient temperature, atmospheric temperature, and more
• Set color alarm
• Choose between six measurement analysis tools or diagrams like spot, line, line profile, box, histogram and delta temperature
• Capable to display thermal image, visual image, thermal-visual side-by-side, or fusion images as well as its associated photo or note tags
• Create reports based on available templates and then customize them to suit your client’ needs
• Generate reports in Microsoft Words or PDF
• Eleven local languages to choose from - English, Spanish, Italian, French, German, Portuguese, simplified Chinese, traditional Chinese, Japanese, Korean and Russian

Download for free from www.agilent.com/find/TrueIR_ART

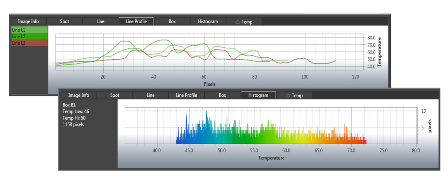

Figure 8. Sample of measurement analysis diagrams

Basic Performance

Image Processing and Enhancement

Measurements and Alarm

1. Minimum distance with accuracy, 10cm to 50cm: ±4°C or ±4%

Supplemental Characteristics

Product Characteristics
